Agricultural Bearings

HLU Ag Bearing Selection

  • Hi-Light USA Agricultural Bearing Group Offering

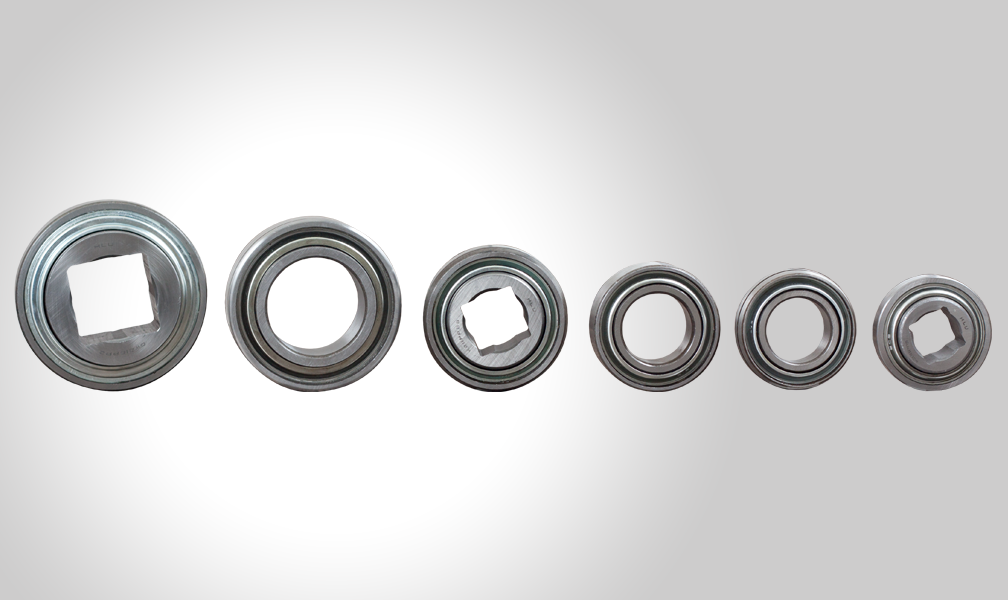

  • Hi-Light USA Ag Insert Bearings

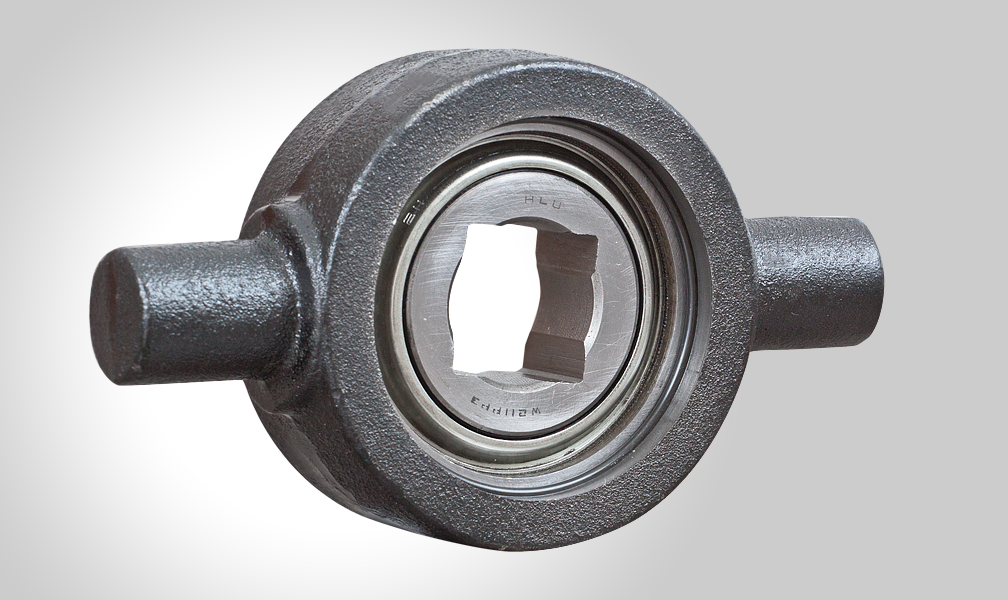

  • Hi-Light USA Trunnion Bearing

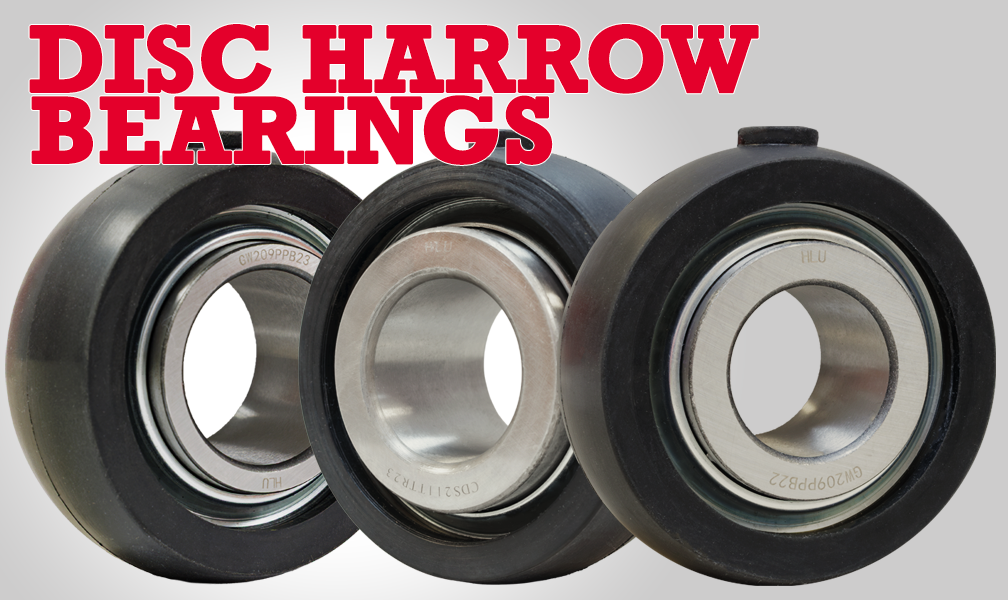

Heavy Duty Disc Bearings

The Hi-Light disc bearing is produced from the highest quality 52100 vacuum degassed bearing steel. High grade steel balls and number 3 lithium based grease with operating temperatures of -4º F to 248º F provide long bearing life in severe conditions.

Hi-Light disc bearings are equipped with triple lip seals that are molded to a heavy gauge steel shroud cap. The seal is pressed into the outer ring groove and the triple lip seals make contact to the precision ground inner ring.

The Hi-Light seal design offers optimum protection in applications such as disc harrows, tillers and other agricultural implements.

The Hi-Light disc bearings are available in: Square Bore Regreasable, Square Bore Non-Regreasable, Round Bore Regreasable and Round Bore Non-Regreasable.

We provide spherical and cylindrical bearings for a variety of applications.

ST Disc Harrow Units
The Hi-Light ST Series are integral mounted assemblies that provide the same features and design as our unmounted disc bearings. These units are produced with two heavy gauge case hardened and zinc plated steel stampings that are riveted together to form the one piece unit. We install two o-rings to provide precise regreasing and eliminate contaminants.

We machine the bearings and for the housing to provide:
* +/- 3º Dynamic Alignment
• Positive Lubrication
• Machining to prevent circumferential movement in the housing.

Agricultural Radial Special Bearings
Hi-Light USA produces an extensive line of ag radial ball bearings for a wide variety of applications.

The HLU special bearing may utilize one or more of the following features:
• Special seal designs to substantially reduce internal contamination for extended performance
• Specially machined raceways provide four point contact (gothic arch) limiting axial movement while providing optimum radial load capabilities.
• Non-standard dimensional characteristics for specific original equipment requirements.

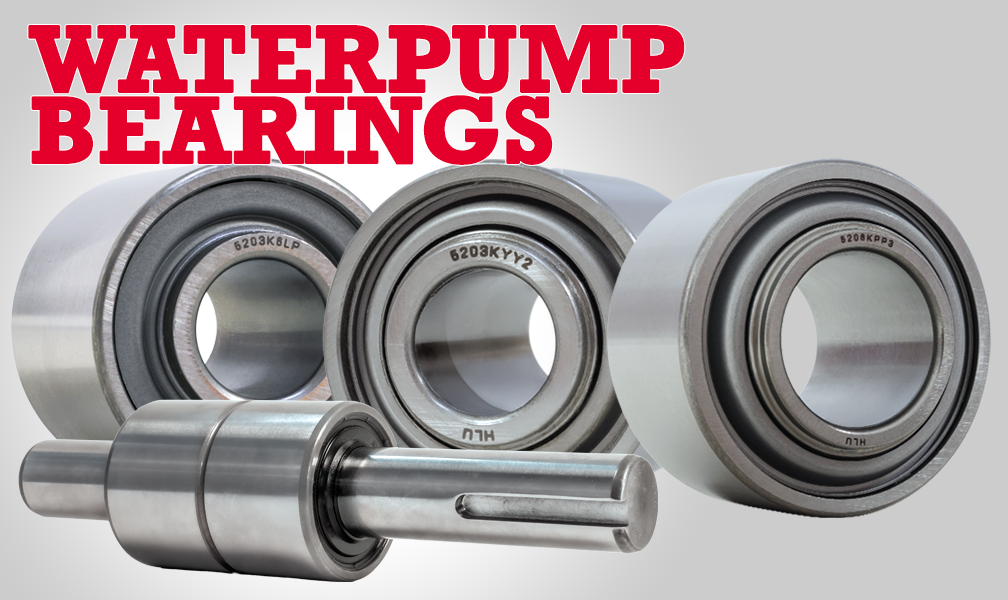

Water Pump Bearings
Hi-Light USA water pump bearings are designed for the most severe agricultural conditions.

The HLU single stem bearings are designed with double lip seals on the stem side for optimum sealing performance and a heavy gauge steel cap opposite the stem for positive sealing. The double stem bearings are designed with double lip seals on the stem side for optimum sealing performance and a heavy gauge steel cap opposite side the stem for positive sealing. The double stem bearings are designed with double lip seals on both stem sides.

• 52100 vacuum degassed steel
• ABEC-1 precision machining
• Excellent sealing configuration

AG Special Bearings

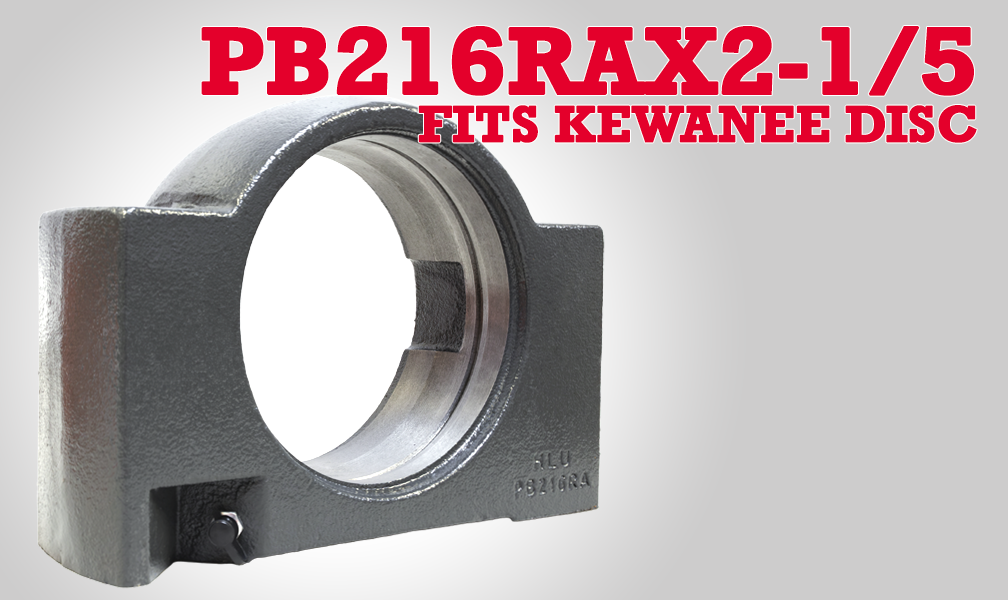

• PB216RA x 2-1/4
• CDS211TTR23
• Trunyon Units
