Mounted Ball Bearings

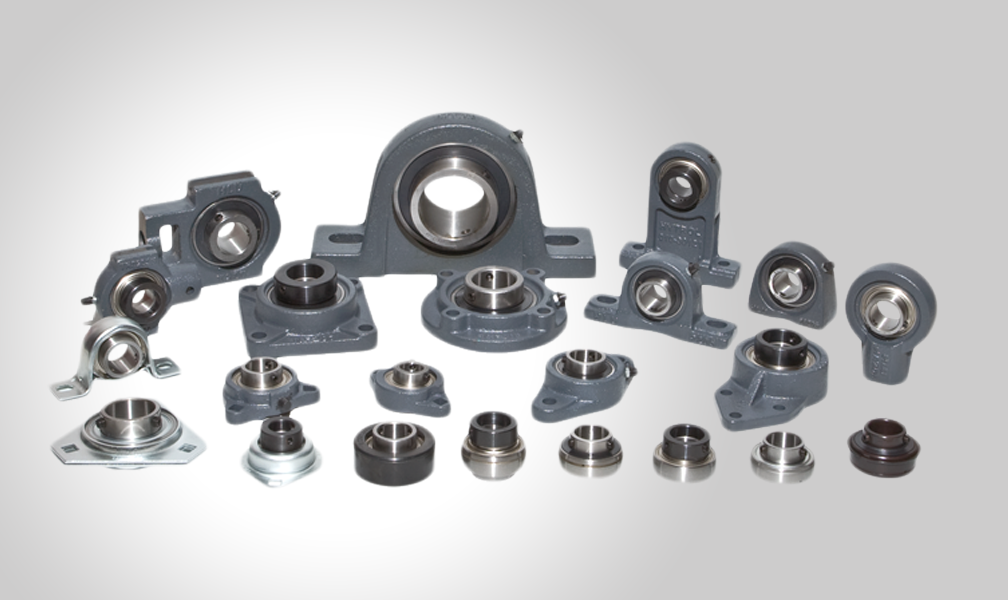

HLU Mounted Ball Bearings

The Hi-Light USA Mounted Bearing and Adaptor Insert line offers you a vast selection of quality bearings in many housing configurations. We have many years of experience in the industry working with Distributors and OEM customers that has allowed us to develop one of the most respected bearing lines in the industry.


Chrome and Steel Ball Bearing Insert Features:

Rings and Balls are made of GCr15 52100 vacuum degassed bearing steel. This cleaner high-quality steel along with precision grinding and super-finishing of raceways adds to L10 bearing life.

Rings and Balls are made of GCr15 52100 vacuum degassed bearing steel. This cleaner high-quality steel along with precision grinding and super-finishing of raceways adds to L10 bearing life.

Grade 10 balls for quiet and smooth performance.

Riveted Steel Retainers

Zone hardened annealed inner rings in set screw areas to prevent cracking.

Locking devices available in both knurled cup point set screw and eccentric locking collar. Available in narrow and wide inner ring widths.

A variety of seal configurations for maximum protection from containments and grease retention.

Available in:

B type (contact seal and slinger cover)
K type (molded single lip contact seal)
R3 triple lip (molded triple lip contact seal)

High quality lithium based grease is standard which can be used in applications with temperature ranges from -4 F to +248 F (-20 C to +120 C). Many other greases are available. We use high tensile strength gray iron for our castings. Steel zerk fitting with covers are standard.

Our Pillow Blocks are available in high-base and low-base featuring a solid machined base for enhanced stability in severe applications.

Housings are also available in ductile iron for applications with more shock load and vibration. J7 housing fit is standard and allows for good self-alignment. Other housing fits are available.

Please call our professional sales staff so we can help you with the right Hi-Light USA bearing for your application.
